Standard TCXO Series – TX-J Type

Standard TCXO Series – TX-J Type

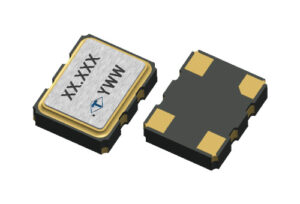

3.2 x 2.5 mm SMD Temperature Compensated Crystal Oscillator

Product Highlight

  • Typical 3.2 x 2.5 x 0.95 mm ceramic SMD package
  • LVCMOS Output Logic
  • Femto second phase jitter and -145dBc/Hz at 10kHz offset

Overview

  • Package Size: 3.2 x 2.5 x 0.95 mm
  • Freq. : 9.5 to 60 MHz
  • Product Shape: SMD
  • Supply Voltage: 1.8/2.5/3.3V
  • Output level: CMOS

RoHS PB-free

Hot AEC-Q200
Freq. Stability Operating Temp. Range (°C)
[×10-6, ppm] Min. Max.
±2.5 -40 85
±2.5 -40 95
±5.0 -40 105
