QCM_5MHz Series – S-CAAAA-5MK02

QCM_5MHz Series – S-CAAAA-5MK02

Quartz Thickness - Monitor Crystal

Product Highlight

  • Quartz thickness sensor for anti-reflective coatings and semiconductor vacuum evaporation processing
  • EverLife Gold-Electrode
  • Superior longer lifetime
  • Low contact resistance
  • High chemic stabilization
  • Compatible with Ulvac™ type quartz crystal
  • Taitien Quartz Thickness-Monitor Crystal can be easily positioned inside Ulvac™ thin film deposition controller equipment for your material depositions and vaccum evaporation

Overview

  • Diameter : 12.37 ± 0.03 mm
  • Freq. : 5 MHz

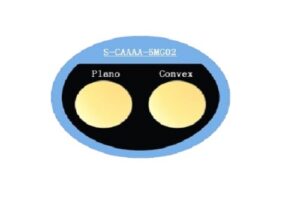

  • Contour : plano-convex
  • Electrode : EverLife Gold (Cr / Au)
  • Packing : 10 crystals / disc

RoHS PB-free

Hot
Resonant Freq. @ 25°C
(MHz)
Min. Max.
4.995 5.005
