High Precision TCXO Series – TT-L Type
Posted on 2020-01-31 in

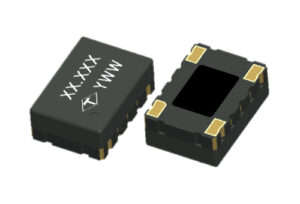

7.0 x 5.0 mm SMD Voltage Controlled Temperature Compensated Crystal Oscillator
Product Highlight
- Supply Voltage: 3.3V, 5.0V Supply Options
- Frequency Stability: 0.5ppm at -40°C to 85°C
- Clock Output: Clipped Sine Waveform and CMOS Options
- Output Frequency support from 10MHz to 52MHz
- Low G Sensitivity: <0.5ppb/g (<0.3ppb/g Available)
- Phase Jitter: <0.5ps (at 12kHz to 5MHz Frequency Offsets)
- Temperature Range: -40°C to 85°C
- Pb-free/RoHS compliant
| Freq. Stability | Operating Temp. Range (°C) | |
|---|---|---|
| [×10-6, ppm] | Min. | Max. |
| ±0.28 | -20 | 70 |
| ±0.5 | -40 | 85 |
