Standard TCXO Series – TY-J Type

Standard TCXO Series – TY-J Type
Standard TCXO Series – TY-J Type
Posted on 2017-03-24 in

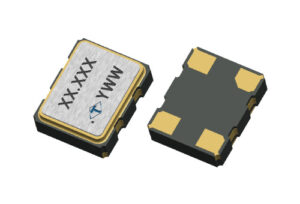

2.5 x 2.0 mm SMD Temperature Compensated Crystal Oscillator

Product Highlight

  • Typical 2.5 x 2.0 x 0.85 mm ceramic SMD package
  • LVCMOS Output Logic
  • Femto second phase jitter and -145dBc/Hz at 10kHz offset

Overview

  • Package Size: 2.5 x 2.0 x 0.85 mm
  • Freq. : 9.5 to 60 MHz
  • Product Shape: SMD
  • Supply Voltage: 1.8/2.5/3.3V
  • Output level: CMOS

RoHS PB-free

Hot New AEC-Q200
Freq. Stability Operating Temp. Range (°C)
[×10-6, ppm] Min. Max.
±2.5 -40 85
±2.5 -40 95
±5.0 -40 105
