Low Phase Noise / Low G-Sensitivity OCXO – NI-10M-6800
Posted on 2026-10-05 in
36.3 x 27.2 mm 10MHz Low Phase Noise / Low G-Sensitivity Oven Controlled Crystal Oscillator
Product Highlight

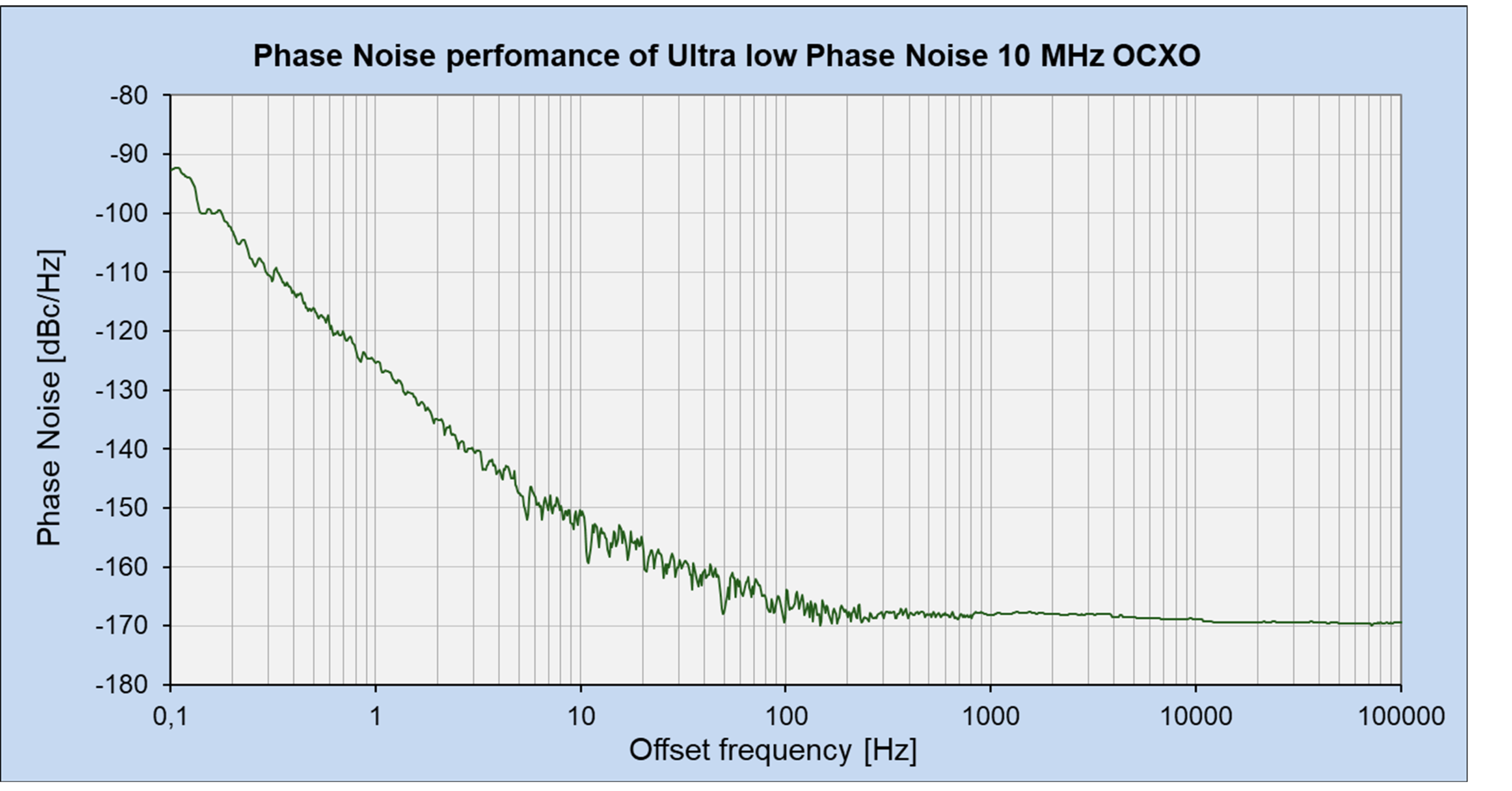

TAITIEN’s NI-10M-6800 Series is a 10 MHz low-phase-noise, low-G-sensitivity (VC)OCXO in a 36.3 × 27.2 × 16 mm hermetically sealed DIP package. Six phase-noise options are available, reaching a best value of -170 dBc/Hz at 1 MHz offset, with maximum G-sensitivity of 1 ppb/g on each axis. Ambient frequency stability is available down to ±5 ppb from -20°C to +70°C or ±10 ppb from -40°C to +85°C. Fast warm-up, electrical frequency tuning, and a reference-voltage output support instrument references, microwave communications, test and measurement equipment, telecom systems, and high-end audio applications. The package is RoHS-compliant and lead-free.
| Ambient Freq. Stability | Operating Temp. Range (°C) | |
|---|---|---|
| [×10-9, ppb] | Min. | Max. |
| ±5 | -20 | +70 |
| ±10 | -20 | +70 |
| ±20 | -20 | +70 |
| ±10 | -40 | +85 |
| ±20 | -40 | +85 |
| ±50 | -40 | +85 |
