Stratum 3 VCTCXO – Stratum 3 TW Type
Posted on 2025-05-20 in

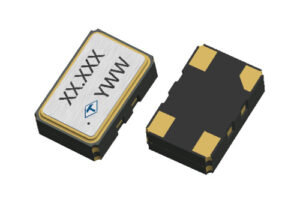

5.0 x 3.2 mm SMD Voltage Controlled Temperature Compensated Crystal Oscillator
Product Highlight
Taitien’s Stratum 3 VCTCXO – TW Type offers compact precision for synchronization-critical systems such as base stations and femtocells. Designed in a 5.0 x 3.2 mm SMD package, this Voltage Controlled Temperature Compensated Crystal Oscillator provides stable performance across wide temperature ranges (-40°C to +85°C) with frequency options from 10 to 52 MHz. Featuring CMOS and clipped sine wave outputs, and ultra-low phase noise at -140 dBc/Hz @ 1kHz, it meets stringent Stratum 3 holdover requirements. The TW series ensures reliable synchronization in space-constrained environments where timing accuracy matters most.
| Stability | Freq. Overall and including 20 years aging | Operating Temp. Range (°C) | |
|---|---|---|---|
| [×10-6, ppm] | [×10-6, ppm] | Min. | Max. |
| ±0.1 | ±4.6 | -20 | 70 |
| ±0.28 | ±4.6 | -40 | 85 |
Solution
- GNSS Timing
