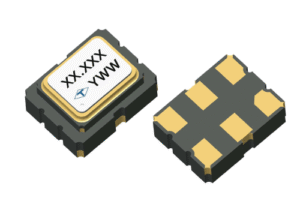

3.2 x 2.5 mm SMD Voltage Controlled Temperature Compensated Crystal Oscillator
Product Highlight
The Taitien TX-U Type represents a flagship-level differential VCTCXO specifically engineered for demanding telecom infrastructure, high-performance networking equipment, and mission-critical industrial applications. Its remarkably compact 3.2 x 2.5 mm SMD package delivers exceptional space efficiency and compactness, making it an ideal choice for modern high-speed circuit designs where board real estate is at a premium. With an impressive 150fs typical RMS jitter performance measured across the 12kHz to 20MHz frequency offset range, this oscillator ensures exceptional signal integrity and phase noise performance in advanced 5G wireless systems and ultra-high-speed data transmission links. The product provides comprehensive frequency coverage supporting 15 MHz to 2100 MHz operating frequencies and offers flexibility through multiple differential output interface options including LVPECL / LVDS / HCSL / CML standards to accommodate various system requirements. It maintains stringent ±1.0-2.0 ppm frequency stability and accuracy across the extended operating temperature range from -40°C to 105°C, making it particularly well-suited for deployment in 5G base station equipment, high-speed fiber optic communication systems, and high-end enterprise-grade routers and switches.
| Freq. Stability | Operating Temp. Range (°C) | |
|---|---|---|
| [×10-6, ppm] | Min. | Max. |
| ±1.0 | -40 | 85 |
| ±2.0 | -40 | 105 |
