High Precision VCTCXO/TCXO – TL Type
Posted on 2025-06-05 in

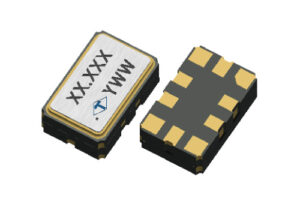

5.0 x 3.2 mm SMD Voltage Controlled Temperature Compensated Crystal Oscillator
Product Highlight
Taitien’s TL series is a compact, high precision Voltage Controlled Temperature Compensated Crystal Oscillator (VCTCXO) engineered for demanding timing applications. With dimensions of just 5.0 x 3.2 x 1.85 mm, it delivers exceptional stability of ±0.1 ppm across a wide temperature range from -40°C to +105°C. Supporting both CMOS and clipped sine wave outputs, the TL VCTCXO minimizes phase noise to -142 dBc/Hz @ 1kHz, ensuring accurate performance in telecom systems, satellite communication, and microwave testing. Its versatile frequency range (10–52 MHz) and robust design make it ideal for synchronization in mission-critical environments. Choose the TL Series to ensure stability and precision where timing cannot fail.
| Freq. Stability | Operating Temp. Range (°C) | |
|---|---|---|
| [×10-6, ppm] | Min. | Max. |
| ±0.05 | -40 | 95 |
| ±0.1 | -40 | 105 |
| ±0.2 | -40 | 105 |
