Stratum 3 VCTCXO – Stratum 3 TP Type
Posted on 2025-06-05 in

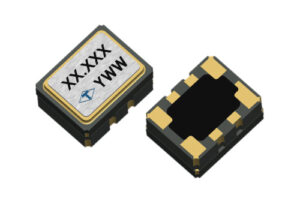

3.2 x 2.5 mm SMD Voltage Controlled Temperature Compensated Crystal Oscillator
Product Highlight
Taitien’s TP-F VCTCXO meets Stratum 3 requirements with long-term frequency stability of ±4.6 ppm over 20 years. Designed for femtocell and base station synchronization, it offers excellent holdover capability under sync-loss conditions. This 3.2 x 2.5 mm device ensures ±0.2 ppm frequency stability from -40°C to +85°C and ultra-low phase noise of -145 dBc/Hz @ 1kHz. With support for CMOS and clipped sine wave outputs across 5–52 MHz, TP-F combines precision and resilience for telecom timing architectures.
| Stability | Freq. Overall and including 20 years aging | Operating Temp. Range (°C) | |
|---|---|---|---|
| [×10-6, ppm] | [×10-6, ppm] | Min. | Max. |
| ±0.1 | ±4.6 | -20 | 70 |
| ±0.2 | ±4.6 | -40 | 85 |
Solution
- GNSS Timing
