20.6 x 20.6 x 15 mm 100 MHz Ultra Low Power Voltage Controlled Oven Controlled Crystal Oscillator
Product Highlight

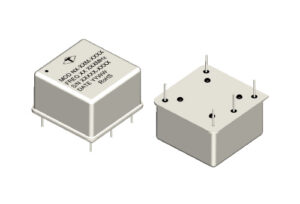

Taitien Electronics’ NP-100M-7000 is a 100 MHz Ultra Low Power (VC)OCXO that delivers high-frequency sine wave output with exceptional phase noise performance and minimal power consumption. Packaged in a compact 20.6 x 20.6 x 15 mm hermetically sealed through-hole housing, the device provides tight frequency stability of ±100 ppb across -40°C to +85°C with only 120 mW typical steady-state power. Built around an SC-cut crystal, it achieves outstanding phase noise of -168 dBc/Hz at 100 kHz offset and -162 dBc/Hz at 10 kHz, together with ±0.7 ppm voltage tuning range for closed-loop disciplining applications. The NP-100M-7000 is ideal for RF reference clocks in portable communication systems, high-precision GPS / GNSS receivers, UHF synthesizers, mobile test equipment, and battery-powered platforms requiring a clean, stable carrier under humid or harsh environmental conditions.
| Ambient Freq. Stability | Operating Temp. Range (°C) | |
|---|---|---|
| [×10-9, ppb] | Min. | Max. |
| ±100 | -40 | +85 |
Solution
- SATCOM Timing
Feature
- All Low Power, Low Power, OCXO
Product Categories
- All OCXO
- Low Power OCXO
- OCXO
OCXO – NP-100M-7000){kind=link}
