High Frequency VCTCXO/TCXO

Powering High Frequencies: The Extraordinary Experience of Taitien's TCXO Series

Taitien's high-frequency TCXO series is an innovative solution born out of the rising bandwidth trends in the communications industry. These products can provide an output frequency of up to 1500 MHz and achieve an exceptional RMS phase jitter of only 0.6 ps within a bandwidth of 12 kHz to 20 MHz. Additionally, the TCXO series offers frequency compensation and excellent temperature stability for various harsh environments, achieving STRATUM 3 clock accuracy. Finally, to meet the miniaturization challenges in the consumer electronics field, we provide a variety of TCXO sizes, the smallest being only 3.2 x 2.5 mm, effectively reducing PCB area occupancy. We also offer multiple output methods to meet different application needs.

  • High-frequency output, reaching 1500 MHz
  • Low phase jitter, only 0.6 ps
  • Achieves STRATUM 3 clock accuracy

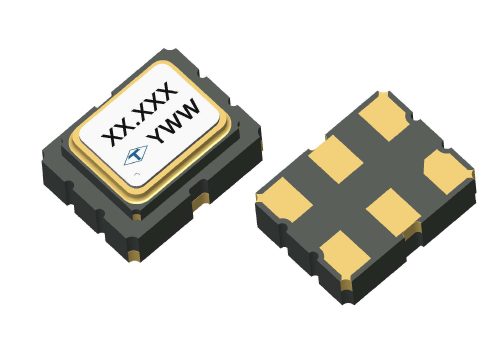

  • A variety of size options, smallest being 3.2 x 2.5 mm
  • Multiple output methods: Sinewave, CMOS, LVPECL, LVDS
  • Applications: Time synchronization, microwave communication, testing and measurement, telecommunications systems, optical network equipment, including 10G, 40G and 100G SONET/SDH/ATM standards and SyncE Ethernet protocol
